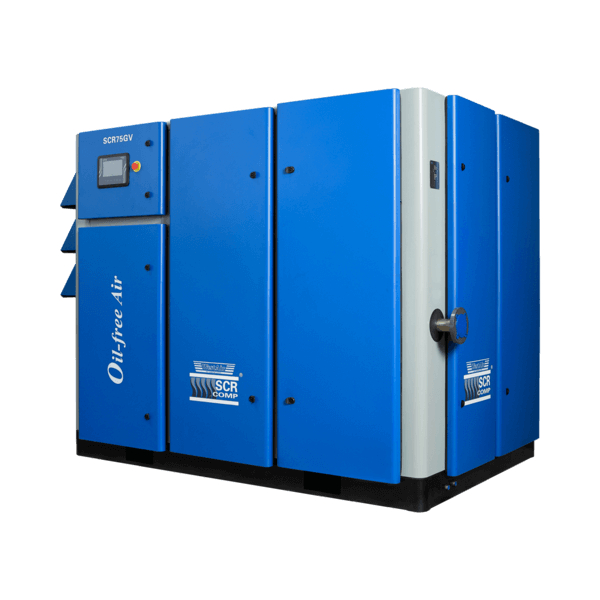

SCR Oil Free Rotary Screw Compressors

The SCR Oil Free Rotary screw compressors are of the highest quality, being awarded the highly sort after ISO Class 0 Air Certificate from the German governing body TÜV. At affordable prices, with either fixed or variable speed options the SCR Oil Free Range are available from 37kW to 250kW.

  • Genuine GHH-Rand Airend – Over 100,000 in operation.
  • ISO Class 0 Certified from German governing body TUV
  • Choice of Fixed Speed or Variable Speed Drive Options – Reduces energy wastage
  • Affordably Priced
SCR Oil Free Rotary Screw Compressors

Features

  • 37-280 kW
  • 7 to 10 bar units available
  • 194 CFM to 1713 CFM
  • ISO Class 0 Certification
  • Fixed or Variable Speed
  • German made GHH Airend
  • Intelligent energy saving Micro Controller
  • Siemens electrical components
  • Stainless Steel piping
  • Genuine long term warranties

Advantages

  • High quality oil free air
  • Lower maintenance cost
  • Affordable Price
  • Energy Saving
  • European parts

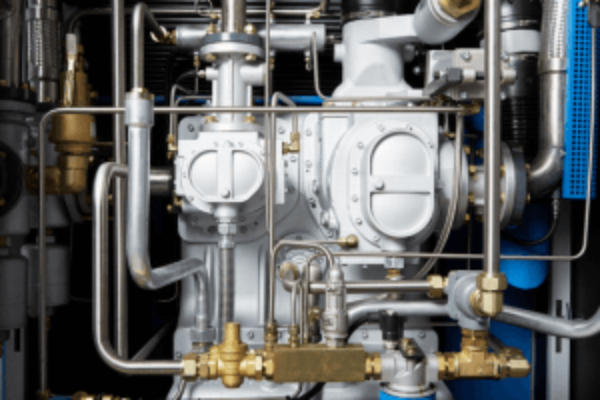

The GHH Oil-Free Airend

The compression airend is the heart of any air compressor, which is why SCR opted to use the industry leading GHH-Rand two-stage airend from Germany. GHH-Rand has been manufacturing and perfecting the twostage oil-free airend since 1984, and is trusted by hospitals and leading global brand manufacturers to provide oil-free air.

Perfect For Industries Including:

  • Pharmaceutical
  • Food & Beverage
  • Medical & Healthcare
  • Power Generation
  • Electronics and Semi-Conductor
  • Manufacturing
  • Textiles and more…

Technical Specifications

Model Power
(kW)
Power
(HP)
Capacity
(m³/min)
Capacity
(CFM)
Pressure
(bar)
Air Outlet Size Dimensions
(mm)
Weight
(kg)
SCR50G/V-8 37 50 5.5 194 8 DN50 2387 x 1250 x 1980 2387
SCR60G/V-8 45 60 6.6 233 8 DN50 2380 x 1580 x 1880 2700
SCR75G/V-8 55 75 8.8 311 8 DN50 2380 x 1580 x 1880 2750
SCR100G/V-8 75 100 11.8 417 8 DN50 2380 x 1580 x 1880 2800
SCR125G/V/W-8 90 125

13.6

480 8 DN50 2380 x 1580 x 1880 3400
